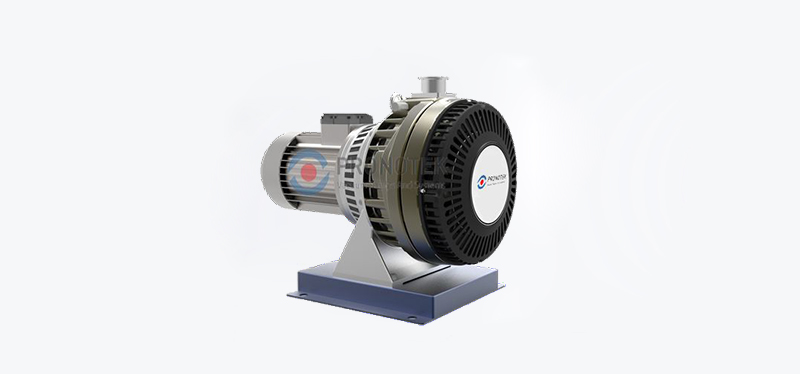

PNK DSL 600 Scroll vacuum pump

Scroll dry pump with excellent performance

Motor power:    0.75Kw

Pumping speed:   30m³/h

Extreme vacuum limit:     0.008 mbar

Would you like to know more?

Please contact us directly(China PRONOTEK):

Download product sheet

PNK DSL Series scroll pump Performance advantage

Specification parameters

  • PNK DSL 600 Scroll vacuum pump
Technical parameterUnitPNK DSL 600
Rated speedrpm1750
Theoretical pumping speedm3/h30
Extreme vacuum limitmbar0.008
Inlet flange-KF40
Outlet flange-KF25
Input voltageVSingle phase 100-240/Triple phase 200-460
Overall dimensionmm491×305×401(L×W×H)
Motor powerW750
Water vapor treatment capacityg/h60
Leakage ratembar· l/s﹤1×10-4
Noise leveldB(A)63
Cooling mode-風冷
Operating ambient temperature5至40
Weightkg44

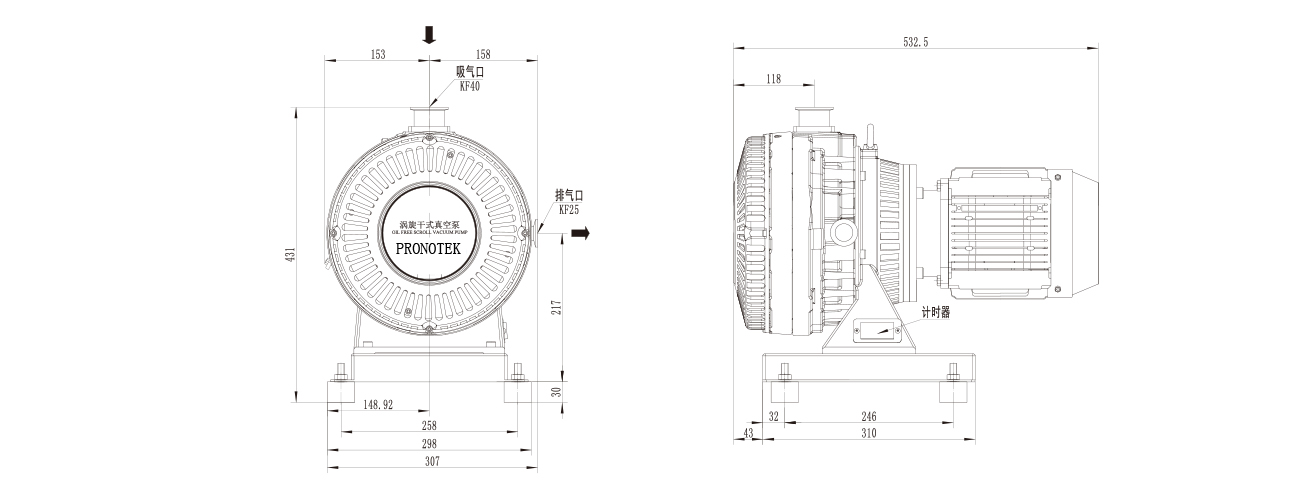

Mounting dimensions

PNK DSL 600渦(wō)旋式真空泵

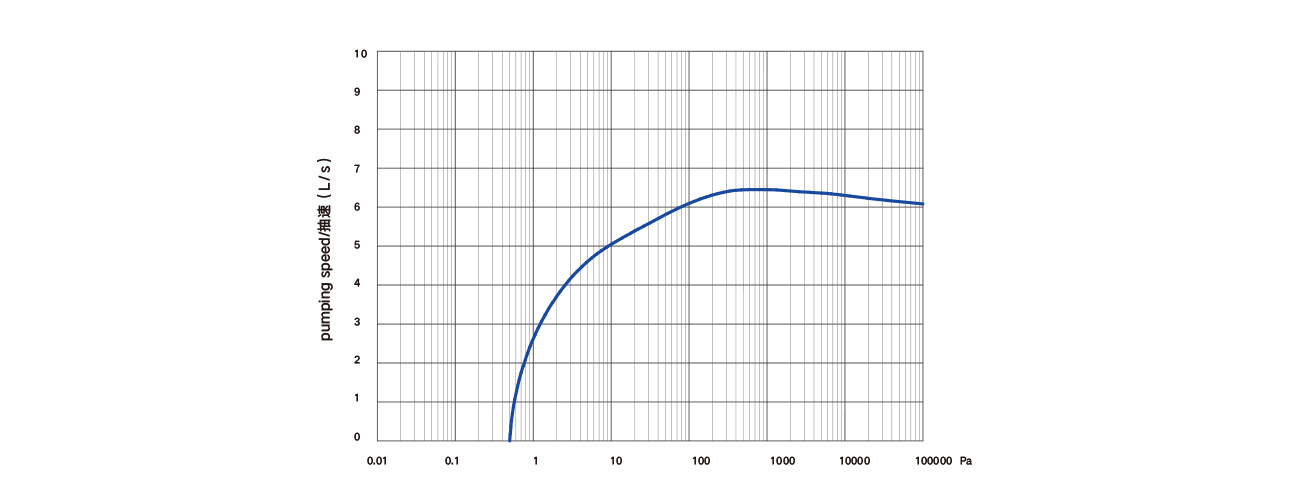

Performance curve

PNK DSL 600渦旋式真空泵

Parts
